Peg-in-Hole Simulation & RL Platform

Internship at Fraunhofer IPA - 2

A sample-efficient framework for learning high-precision insertion:
a UR5e + Robotiq Hand-E gripper, full contact dynamics in MuJoCo, synchronized multi-camera vision, configurable classical controllers, and an end-to-end RLPD-style training pipeline.

See also:
Modular Control Pipeline for Real UR5e Manipulator

RLPD-Style Training Pipeline

  • Pipeline design inspired by the HIL-SERL framework, enabling human-in-the-loop interventions during training.
  • Replay buffer mixes expert demos with online rollouts, supports prioritized & uniform sampling.
  • JAX/Flax Ensemble SAC learner with convolutional encoders for images and FC nets for states.
  • Actor–Learner split enables asynchronous collection; Docker image ships with GPU + virtual-display support.

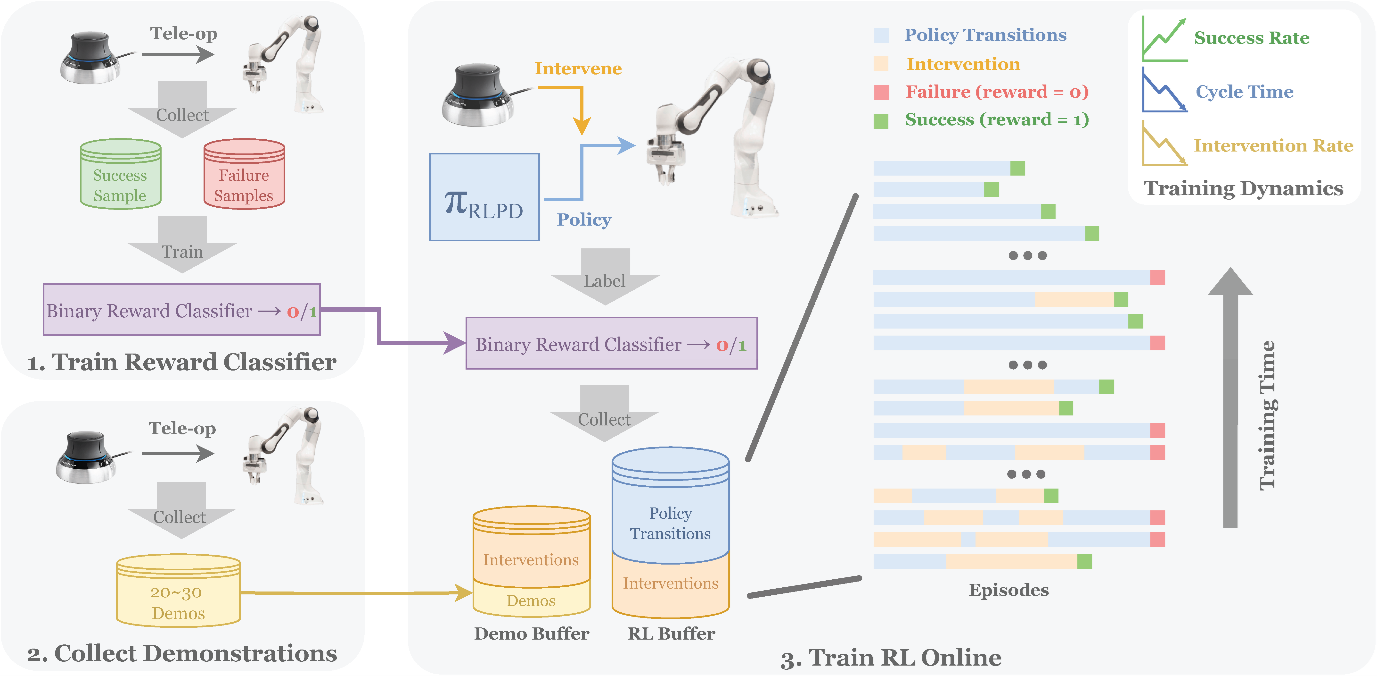

Human-in-the-loop reinforcement-learning pipeline we plan to adopt, inspired by the HIL-SERL[1], [2] approach.

1 Simulation Environment

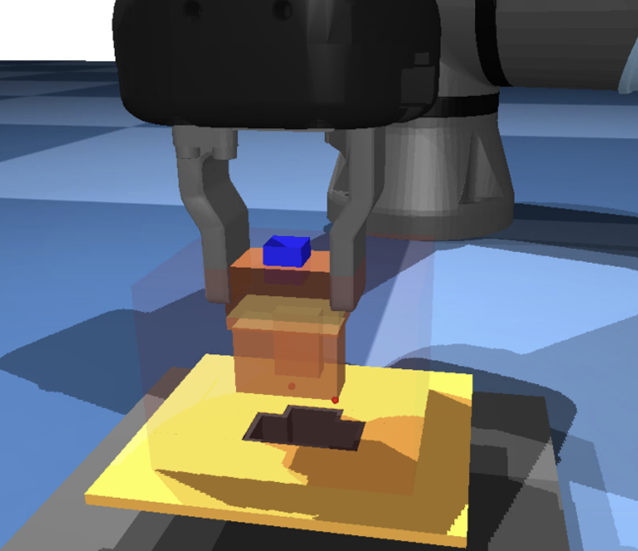

  • MuJoCo scene with calibrated UR5e arm, Hand-E gripper, male connector, and a female port.
  • Realistic inertia, joint limits, fingertip collisions, and contact sensors.
  • Plug-and-play Gymnasium interface, difficulty presets, headless/off-screen rendering, and Docker packaging for reproducibility.

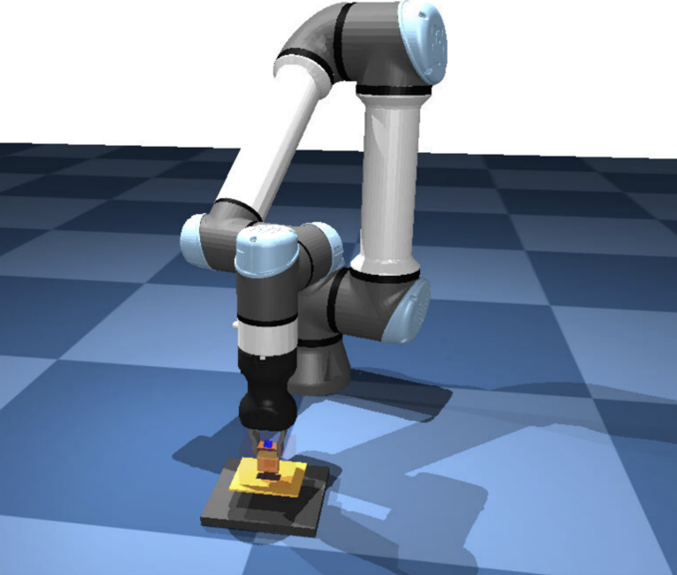

Left: Heuristic based real world scene for force-sensitive insertion. Right: learning-based Gymnasium simulation environment used to solve this task.

1.1 Difficulty Presets

The environment ships with three ready-to-use difficulty presets so you can benchmark algorithms under progressively tougher conditions without touching low-level code.

Level Scenario Highlights Use-Case
Easy Fixed port orientation, modest XYZ randomization, and a rich observation vector (TCP pose, velocity, force-torque, connector & port poses). Rapid prototyping & controller tuning.
Medium Adds in-plane & vertical port shifts plus reduced observations; the agent still sees force-torque and connector pose but must cope with larger spatial variability. Early learning-from-pixels or demo-bootstrapped RL experiments.
Hard Full 6-DoF port orientation randomization and a minimalist observation set (no connector or port pose), stressing contact sensing and visual feedback. Final performance evaluation & sim-to-real robustness tests.


Switching level is as simple as selecting the corresponding Gymnasium ID in your training script, everything else (rendering, logging, reward structure) stays consistent.

2 Modular Control Stack

  • Configurable PD/Impedance controller with inverse-dynamics, pseudo-inverse, and Jacobian-transpose modes.
  • Real-time safety: joint, velocity & acceleration clipping, workspace envelope.
  • Live-tunable gains via a lightweight Qt UI with sliders and force-vector overlay.

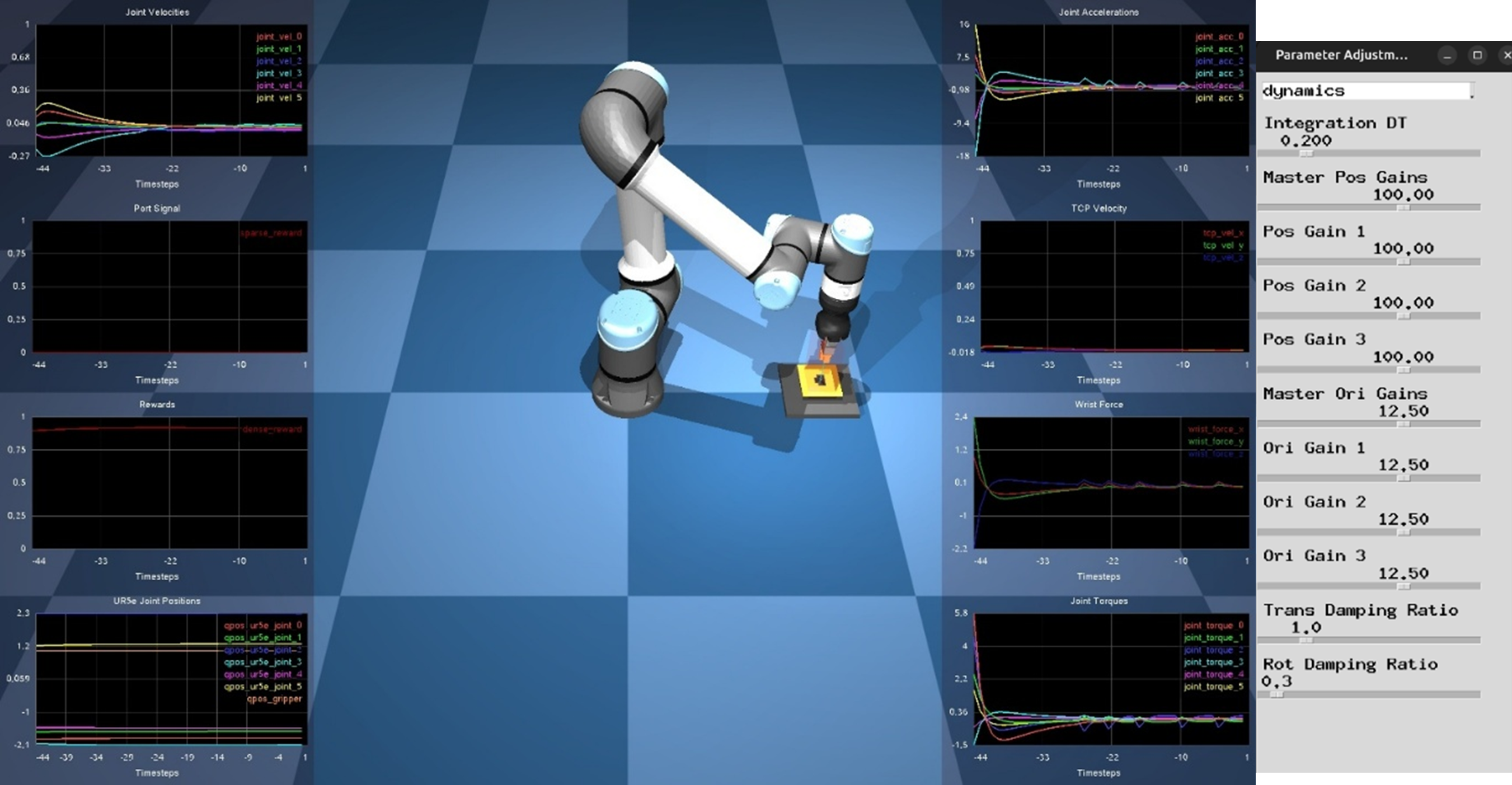

Live telemetry dashboard with plots track joint positions, velocities, accelerations, TCP pose error, and cumulative reward. The dashboard—implemented with a lightweight UI—enabled immediate diagnosis of issues. Interactive overlay of on-screen sliders permit live tuning of proportional/derivative gains and compliance settings. This tool was essential for quickly damping oscillations during controller testing.

3 Interactive Tele-op & Data Capture

  • SpaceMouse and keyboard drivers for human-in-the-loop manipulation.
  • Synchronized RGB video & state logs, plus scripted rollout presets for reproducible demonstrations.
  • Automatic test-suite validates every Docker build with a short rollout and frame dump.

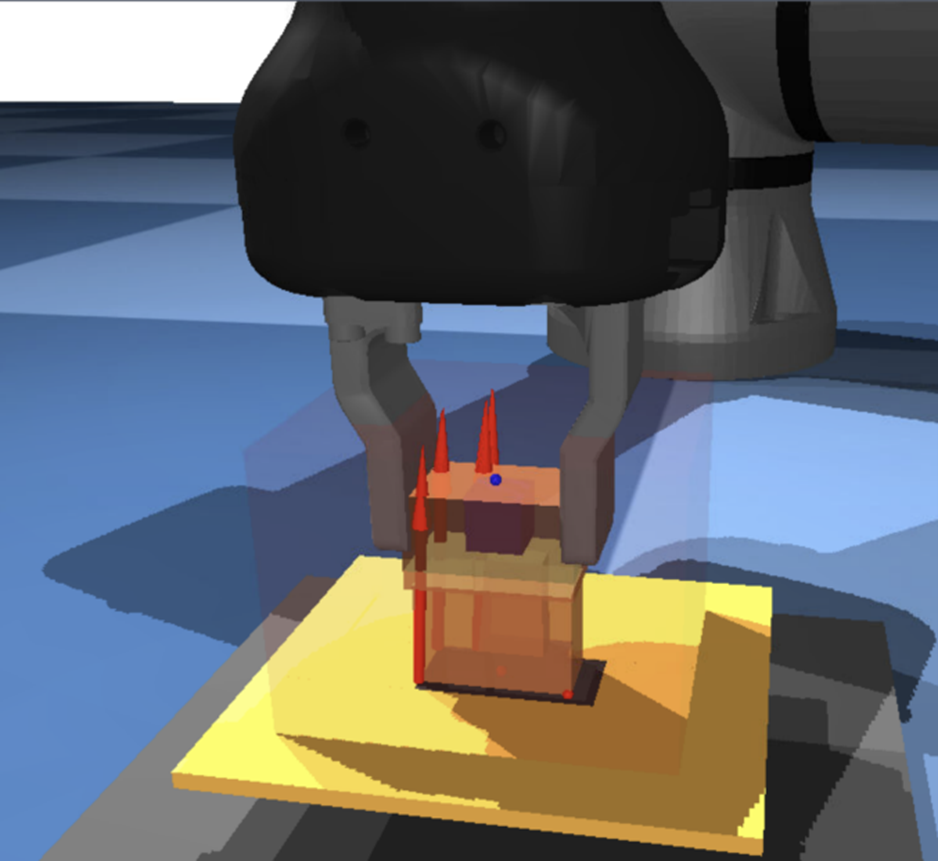

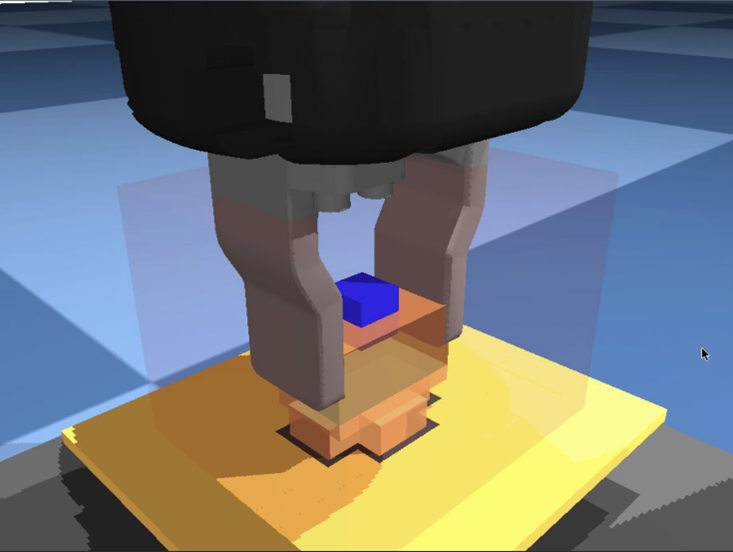

Pre-defined camera presets and workspace envelope. Multiple MuJoCo cameras give consistent viewpoints for data collection and debugging. The translucent red cuboid marks the safety workspace; the opaque blue cube marks the task goal pose, Real-time force vectors (red arrows) emanate from the tool-centre-point

4 Vision Observations

Two virtual cameras—front-view & wrist—deliver 640 × 480 RGB frames each timestep, alongside proprioceptive state.
Wrappers support frame stacking, normalization, and video logging.

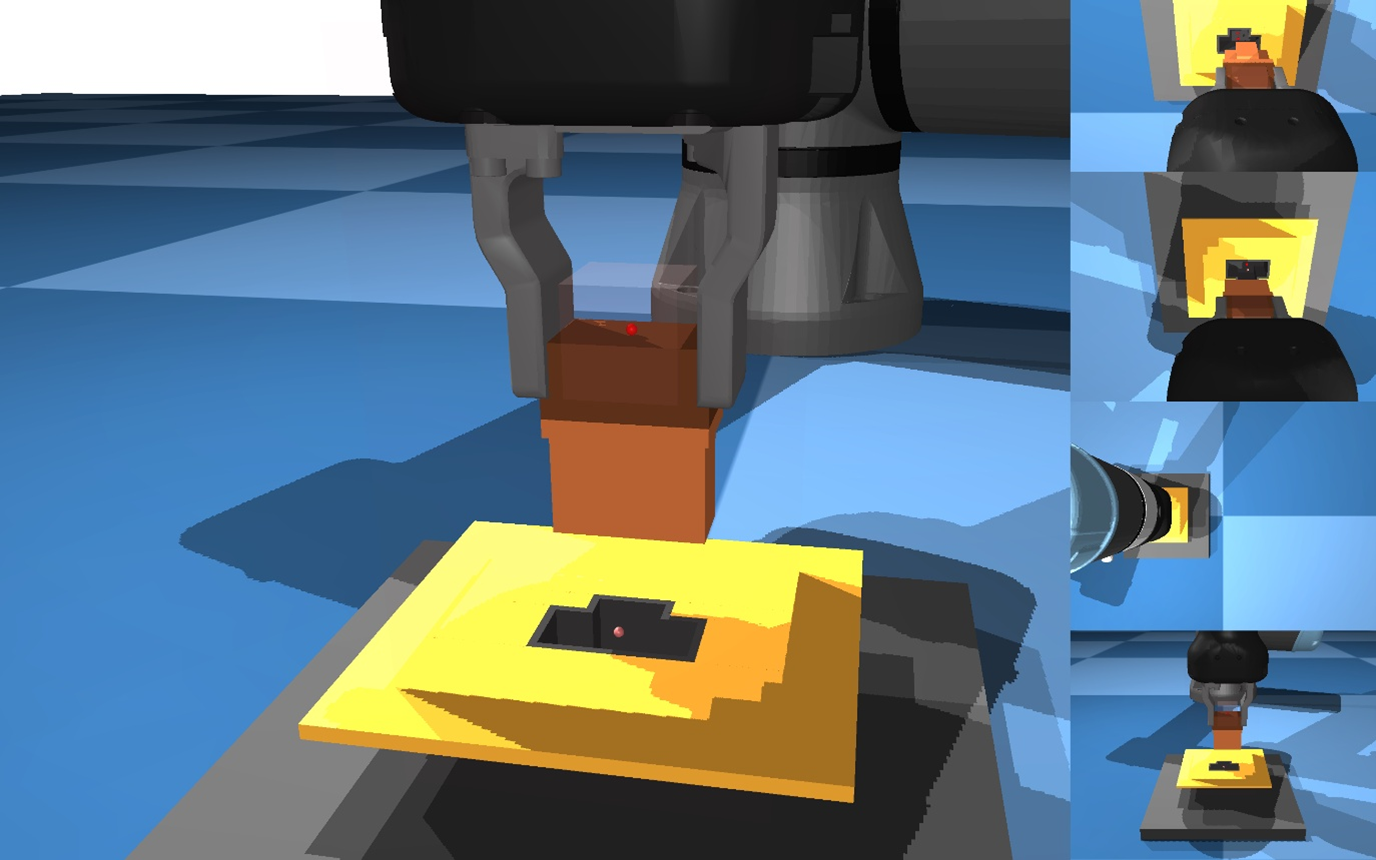

Multi-view image observations integrated into the Render. The vertical strip on the right contains the additional image observations from wrist and front cameras to the agent. Together, these streams expand the observation space from purely proprioceptive state vectors to pixel-level visual input, paving the way for pixel-based SAC experiments.

Takeaways & Next Steps

  • Reproducibility first: Docker, tests, and clear config dictionaries cut onboarding time to minutes.
  • Data matters: 20 high-quality demos were enough to bootstrap RL. Tried behaviour cloning with privileged state observations; performance improved notably when demonstrations were collected with the SpaceMouse instead of heuristic controllers or keyboard input.
  • Introducing DAgger boosted performance further, especially in medium/hard presets where compounding errors are common.
  • Future Work: Train RL policy with interventions for quick convergence and test the entire framework on real robot

References

[1] J. Luo et al., ‘SERL: A Software Suite for Sample-Efficient Robotic Reinforcement Learning’, Feb. 12, 2024, arXiv: arXiv:2401.16013. Accessed: Jul. 04, 2024. [Online]. Available: http://arxiv.org/abs/2401.16013

[2] J. Luo, C. Xu, J. Wu, and S. Levine, ‘Precise and Dexterous Robotic Manipulation via Human-in-the-Loop Reinforcement Learning’.
